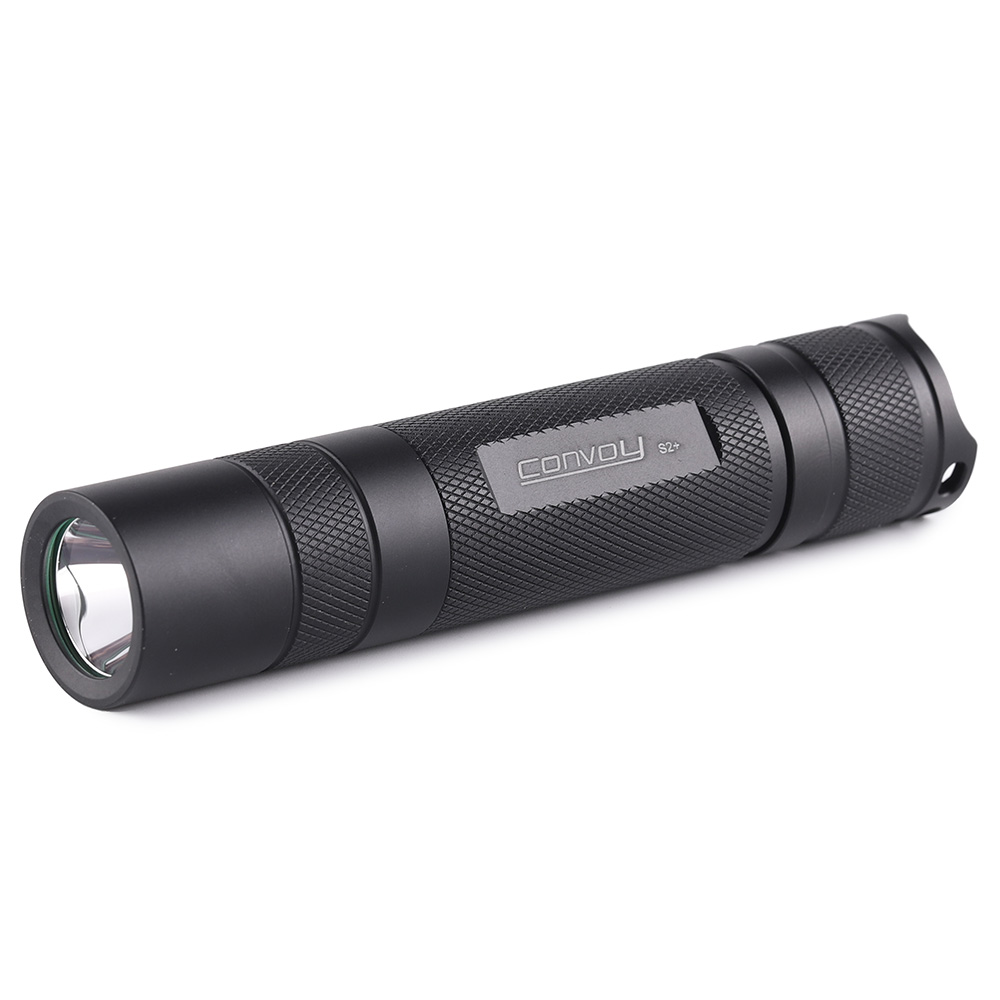

Convoy · Convoy S2+
Convoy S2+ Nichia 519A 4000K R9050 High-CRI 18650 EDC
Nichia 519A 4000K R9050 high-CRI emitter paired with an orange peel reflector produces a clean, artifact-free spot and soft spill. Dedoming reduces CCT to ~3000K and shifts tint rosy (~-0.0040 DUV).
At a glance
Key specifications
How it works
Controls & interface
2CDirect high / turbo3CBattery checkPerformance behavior
Output & regulation
- 30-second output
- 1100 lm
- 5-minute sustained
- 420 lm
- Driver
- Buck
- Regulated levels
- Yes
- Thermal control
- Temperature feedback
- PWM
- Not detected / listed
17mm 5A constant-current buck driver provides flat, ripple-free current regulation on all mode levels with no detectable PWM.
Why this matters: Buck and boost drivers step down or step up voltage efficiently using switching inductors, maintaining flat regulated output as cell voltage drains rather than dimming progressively like FET/linear direct drives.
Deep specs
Technical details
Structured fields used by the database and comparison tools.
Beam & emitter
- Optic
- reflector_OP
- Head diameter
- 24.100000381469727 mm
- Emitter
- Nichia 519A
- CCT
- 4000K
- CRI
- 95
- R9
- 80
- Duv
- 0.0005000000237487257
Nichia 519A 4000K R9050 high-CRI emitter paired with an orange peel reflector produces a clean, artifact-free spot and soft spill. Dedoming reduces CCT to ~3000K and shifts tint rosy (~-0.0040 DUV).
Battery & charging
- Cell
- 18650
- Battery included
- No
- Proprietary cell
- No
- Onboard charging
- None — external charger
- USB-C to C
- No / not listed
- Powerbank
- No
- Low-voltage protection
- Yes
Size & construction
- Length
- 118 mm
- Head diameter
- 24.100000381469727 mm
- Weight
- 76 g
- Body
- aluminum
- Finish
- Type III Hard-Anodized
- IP rating
- IPX8
- Impact rating
- 1.5 m
Carry & enthusiast features
Manufacturer / source data
Runtime claims
| Mode | Output | Runtime | Regulation |
|---|---|---|---|
| Mode 100% | 1400 lm | 1:12 | Regulated |
| Mode 35% | 480 lm | 3:06 | Regulated |
| Mode 10% | 140 lm | 11:00 | Regulated |
| Mode 1% | 14 lm | 85:00 | Regulated |
5A buck driver delivers efficient flat regulation through cell discharge. Burst output steps down to ~420lm sustained under thermal feedback.
Price & availability
Where to buy
Typical price: €19.5
